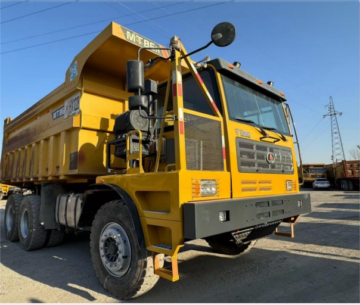

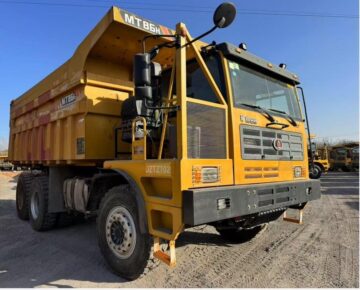

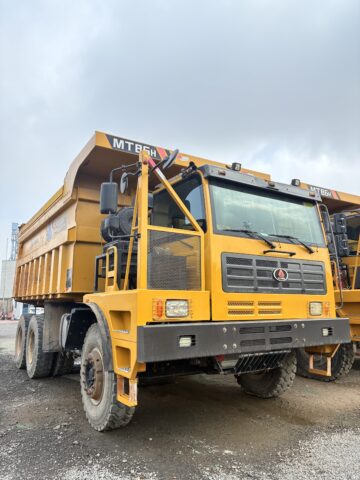

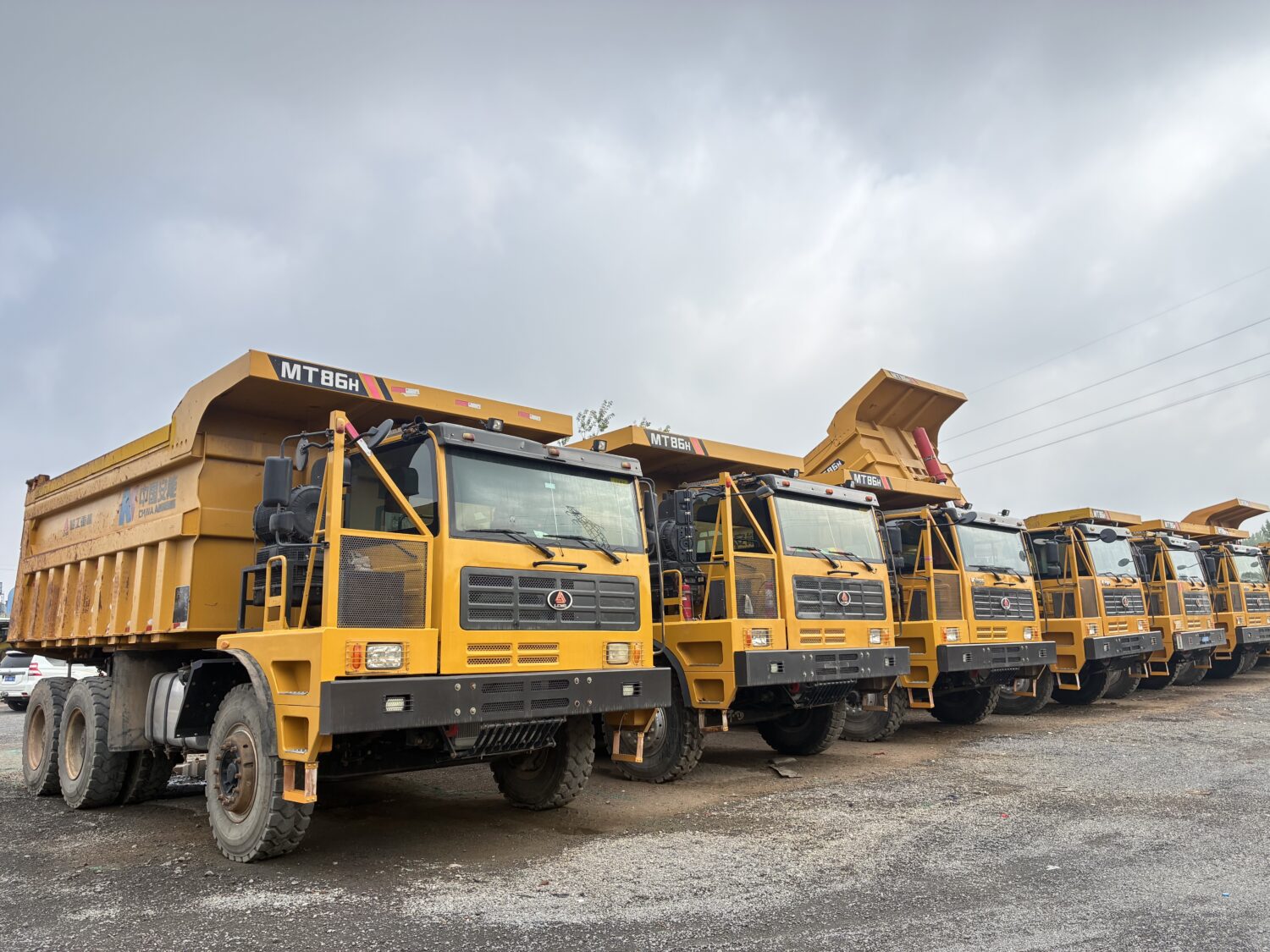

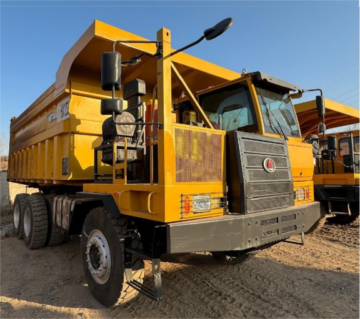

Lingong Heavy Machinery MT86H Mine Wide Body Trucks
Baffle Box Volume: 37.12 m³
MT86H Mine Wide Body Truck Technical Specifications and Parameters
| PRODUCT MODEL | MT86H Mine Wide Body Truck |
| TuelType |
|
| Engine Model | WP12G460E310 |
| Engine Power | 338KW/(460HP) |
| Gear Box Model | 7DS260 |
| Rear Axle | Hande rear bridge |
| Front Axle | Hande front axle |
| Braking Syetem | Air brake |
| Maximum speed | 40km/h |
| Tire Model | 14. 00R25 |
| Overall Vehicle Dimensions | (L）8800mm*(W)3550mm*(H)4000mm |
| Cargo Box Dimensions | (L）5800mm*(W)3200mm*(H)2000mm |
| Cargo BoxPlate Thickness | (Bottom)18mm (side)16mm |
| Cargo Box Volume(m³) | 37 |
| Load Capacity (in tons) | 70tons |
